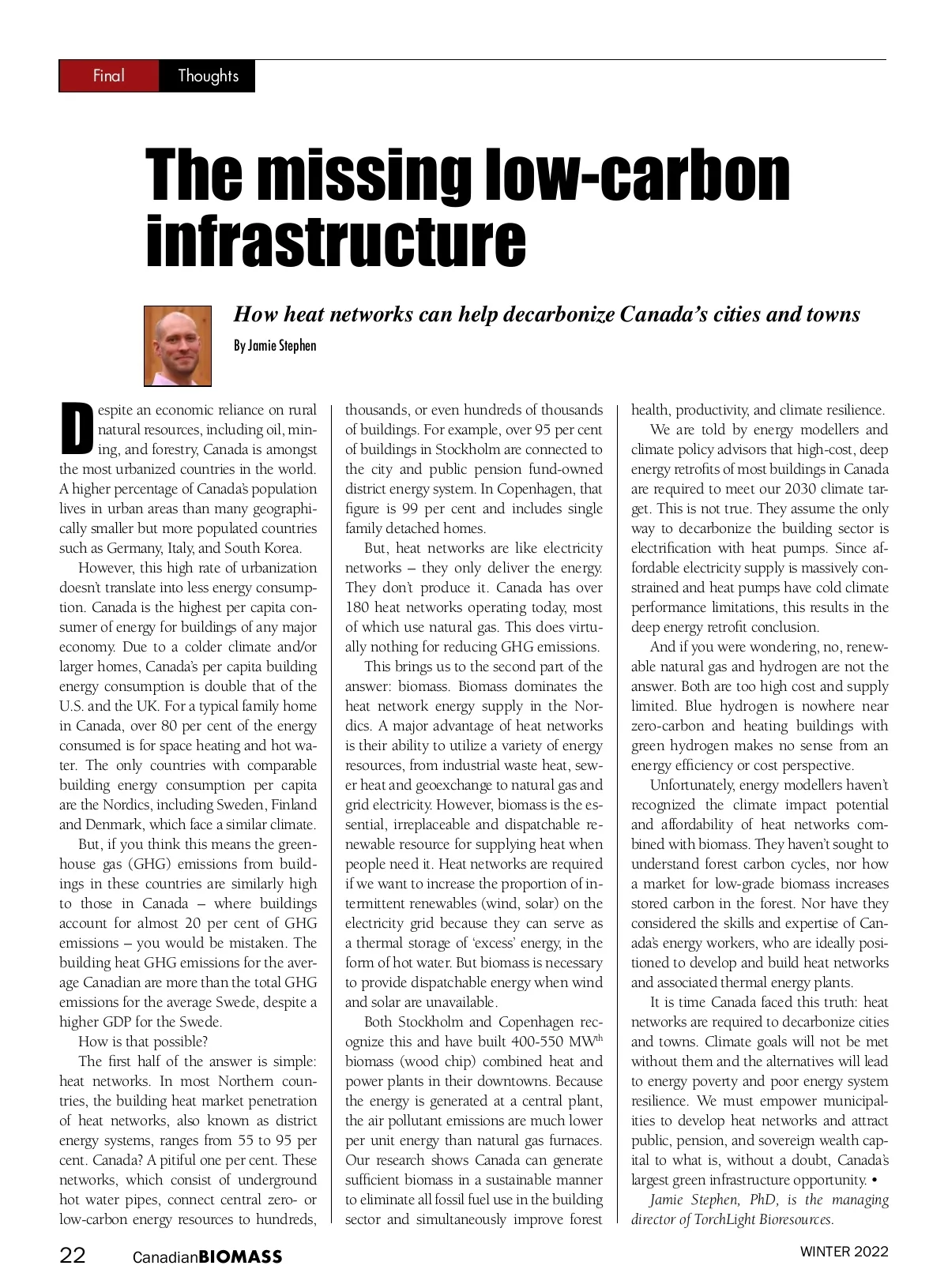

Final Thoughts The missing low-carbon infrastructure How heat networks can help decarbonize Canada’s cities and towns By Jamie Stephen espite an economic reliance on rural natural resources, including oil, min-ing, and forestry, Canada is amongst the most urbanized countries in the world. A higher percentage of Canada’s population lives in urban areas than many geographi-cally smaller but more populated countries such as Germany, Italy, and South Korea. However, this high rate of urbanization doesn’t translate into less energy consump-tion. Canada is the highest per capita con-sumer of energy for buildings of any major economy. Due to a colder climate and/or larger homes, Canada’s per capita building energy consumption is double that of the U.S. and the UK. For a typical family home in Canada, over 80 per cent of the energy consumed is for space heating and hot wa-ter. The only countries with comparable building energy consumption per capita are the Nordics, including Sweden, Finland and Denmark, which face a similar climate. But, if you think this means the green-house gas (GHG) emissions from build-ings in these countries are similarly high to those in Canada – where buildings account for almost 20 per cent of GHG emissions – you would be mistaken. The building heat GHG emissions for the aver-age Canadian are more than the total GHG emissions for the average Swede, despite a higher GDP for the Swede. How is that possible? The first half of the answer is simple: heat networks. In most Northern coun-tries, the building heat market penetration of heat networks, also known as district energy systems, ranges from 55 to 95 per cent. Canada? A pitiful one per cent. These networks, which consist of underground hot water pipes, connect central zero-or low-carbon energy resources to hundreds, D thousands, or even hundreds of thousands of buildings. For example, over 95 per cent of buildings in Stockholm are connected to the city and public pension fund-owned district energy system. In Copenhagen, that figure is 99 per cent and includes single family detached homes. But, heat networks are like electricity networks – they only deliver the energy. They don’t produce it. Canada has over 180 heat networks operating today, most of which use natural gas. This does virtu-ally nothing for reducing GHG emissions. This brings us to the second part of the answer: biomass. Biomass dominates the heat network energy supply in the Nor-dics. A major advantage of heat networks is their ability to utilize a variety of energy resources, from industrial waste heat, sew-er heat and geoexchange to natural gas and grid electricity. However, biomass is the es-sential, irreplaceable and dispatchable re-newable resource for supplying heat when people need it. Heat networks are required if we want to increase the proportion of in-termittent renewables (wind, solar) on the electricity grid because they can serve as a thermal storage of ‘excess’ energy, in the form of hot water. But biomass is necessary to provide dispatchable energy when wind and solar are unavailable. Both Stockholm and Copenhagen rec-ognize this and have built 400-550 MW th biomass (wood chip) combined heat and power plants in their downtowns. Because the energy is generated at a central plant, the air pollutant emissions are much lower per unit energy than natural gas furnaces. Our research shows Canada can generate sufficient biomass in a sustainable manner to eliminate all fossil fuel use in the building sector and simultaneously improve forest health, productivity, and climate resilience. We are told by energy modellers and climate policy advisors that high-cost, deep energy retrofits of most buildings in Canada are required to meet our 2030 climate tar-get. This is not true. They assume the only way to decarbonize the building sector is electrification with heat pumps. Since af-fordable electricity supply is massively con-strained and heat pumps have cold climate performance limitations, this results in the deep energy retrofit conclusion. And if you were wondering, no, renew-able natural gas and hydrogen are not the answer. Both are too high cost and supply limited. Blue hydrogen is nowhere near zero-carbon and heating buildings with green hydrogen makes no sense from an energy efficiency or cost perspective. Unfortunately, energy modellers haven’t recognized the climate impact potential and affordability of heat networks com-bined with biomass. They haven’t sought to understand forest carbon cycles, nor how a market for low-grade biomass increases stored carbon in the forest. Nor have they considered the skills and expertise of Can-ada’s energy workers, who are ideally posi-tioned to develop and build heat networks and associated thermal energy plants. It is time Canada faced this truth: heat networks are required to decarbonize cities and towns. Climate goals will not be met without them and the alternatives will lead to energy poverty and poor energy system resilience. We must empower municipal-ities to develop heat networks and attract public, pension, and sovereign wealth cap-ital to what is, without a doubt, Canada’s largest green infrastructure opportunity. • Jamie Stephen, PhD, is the managing director of TorchLight Bioresources. WINTER 2022 22 Canadian BIOMASS
Canadian Biomass Winter 2022: Page 22
