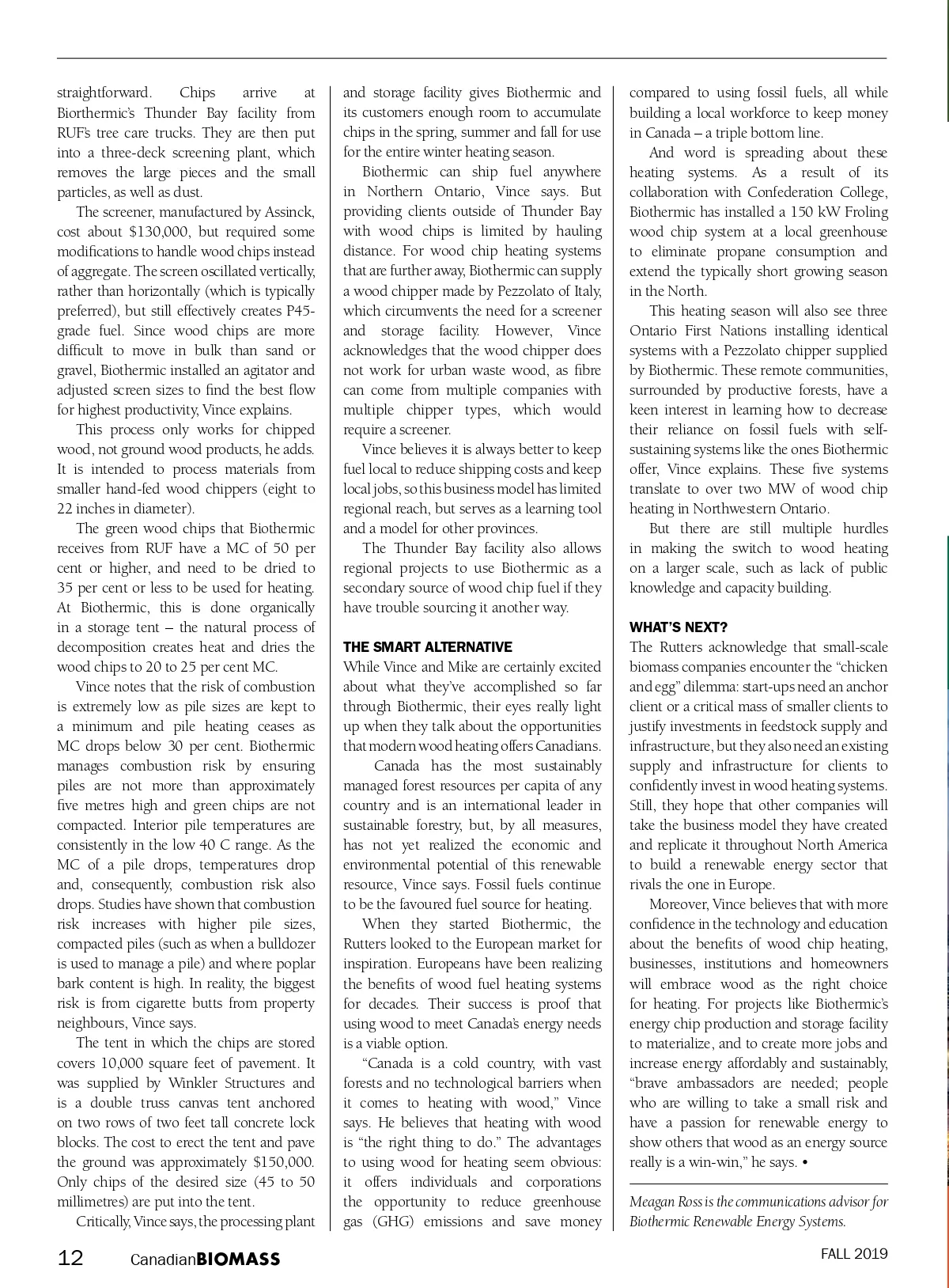

straightforward. Chips arrive at Biorthermic’s Thunder Bay facility from RUF’s tree care trucks. They are then put into a three-deck screening plant, which removes the large pieces and the small particles, as well as dust. The screener, manufactured by Assinck, cost about $130,000, but required some modifications to handle wood chips instead of aggregate. The screen oscillated vertically, rather than horizontally (which is typically preferred), but still effectively creates P45-grade fuel. Since wood chips are more difficult to move in bulk than sand or gravel, Biothermic installed an agitator and adjusted screen sizes to find the best flow for highest productivity, Vince explains. This process only works for chipped wood, not ground wood products, he adds. It is intended to process materials from smaller hand-fed wood chippers (eight to 22 inches in diameter). The green wood chips that Biothermic receives from RUF have a MC of 50 per cent or higher, and need to be dried to 35 per cent or less to be used for heating. At Biothermic, this is done organically in a storage tent – the natural process of decomposition creates heat and dries the wood chips to 20 to 25 per cent MC. Vince notes that the risk of combustion is extremely low as pile sizes are kept to a minimum and pile heating ceases as MC drops below 30 per cent. Biothermic manages combustion risk by ensuring piles are not more than approximately five metres high and green chips are not compacted. Interior pile temperatures are consistently in the low 40 C range. As the MC of a pile drops, temperatures drop and, consequently, combustion risk also drops. Studies have shown that combustion risk increases with higher pile sizes, compacted piles (such as when a bulldozer is used to manage a pile) and where poplar bark content is high. In reality, the biggest risk is from cigarette butts from property neighbours, Vince says. The tent in which the chips are stored covers 10,000 square feet of pavement. It was supplied by Winkler Structures and is a double truss canvas tent anchored on two rows of two feet tall concrete lock blocks. The cost to erect the tent and pave the ground was approximately $150,000. Only chips of the desired size (45 to 50 millimetres) are put into the tent. Critically, Vince says, the processing plant and storage facility gives Biothermic and its customers enough room to accumulate chips in the spring, summer and fall for use for the entire winter heating season. Biothermic can ship fuel anywhere in Northern Ontario, Vince says. But providing clients outside of Thunder Bay with wood chips is limited by hauling distance. For wood chip heating systems that are further away, Biothermic can supply a wood chipper made by Pezzolato of Italy, which circumvents the need for a screener and storage facility. However, Vince acknowledges that the wood chipper does not work for urban waste wood, as fibre can come from multiple companies with multiple chipper types, which would require a screener. Vince believes it is always better to keep fuel local to reduce shipping costs and keep local jobs, so this business model has limited regional reach, but serves as a learning tool and a model for other provinces. The Thunder Bay facility also allows regional projects to use Biothermic as a secondary source of wood chip fuel if they have trouble sourcing it another way. THE SMART ALTERNATIVE compared to using fossil fuels, all while building a local workforce to keep money in Canada – a triple bottom line. And word is spreading about these heating systems. As a result of its collaboration with Confederation College, Biothermic has installed a 150 kW Froling wood chip system at a local greenhouse to eliminate propane consumption and extend the typically short growing season in the North. This heating season will also see three Ontario First Nations installing identical systems with a Pezzolato chipper supplied by Biothermic. These remote communities, surrounded by productive forests, have a keen interest in learning how to decrease their reliance on fossil fuels with self-sustaining systems like the ones Biothermic offer, Vince explains. These five systems translate to over two MW of wood chip heating in Northwestern Ontario. But there are still multiple hurdles in making the switch to wood heating on a larger scale, such as lack of public knowledge and capacity building. WHAT’S NEXT? While Vince and Mike are certainly excited about what they’ve accomplished so far through Biothermic, their eyes really light up when they talk about the opportunities that modern wood heating offers Canadians. Canada has the most sustainably managed forest resources per capita of any country and is an international leader in sustainable forestry, but, by all measures, has not yet realized the economic and environmental potential of this renewable resource, Vince says. Fossil fuels continue to be the favoured fuel source for heating. When they started Biothermic, the Rutters looked to the European market for inspiration. Europeans have been realizing the benefits of wood fuel heating systems for decades. Their success is proof that using wood to meet Canada’s energy needs is a viable option. “Canada is a cold country, with vast forests and no technological barriers when it comes to heating with wood,” Vince says. He believes that heating with wood is “the right thing to do.” The advantages to using wood for heating seem obvious: it offers individuals and corporations the opportunity to reduce greenhouse gas (GHG) emissions and save money The Rutters acknowledge that small-scale biomass companies encounter the “chicken and egg” dilemma: start-ups need an anchor client or a critical mass of smaller clients to justify investments in feedstock supply and infrastructure, but they also need an existing supply and infrastructure for clients to confidently invest in wood heating systems. Still, they hope that other companies will take the business model they have created and replicate it throughout North America to build a renewable energy sector that rivals the one in Europe. Moreover, Vince believes that with more confidence in the technology and education about the benefits of wood chip heating, businesses, institutions and homeowners will embrace wood as the right choice for heating. For projects like Biothermic’s energy chip production and storage facility to materialize, and to create more jobs and increase energy affordably and sustainably, “brave ambassadors are needed; people who are willing to take a small risk and have a passion for renewable energy to show others that wood as an energy source really is a win-win,” he says. • Meagan Ross is the communications advisor for Biothermic Renewable Energy Systems. FALL 2019 12 Canadian BIOMASS
