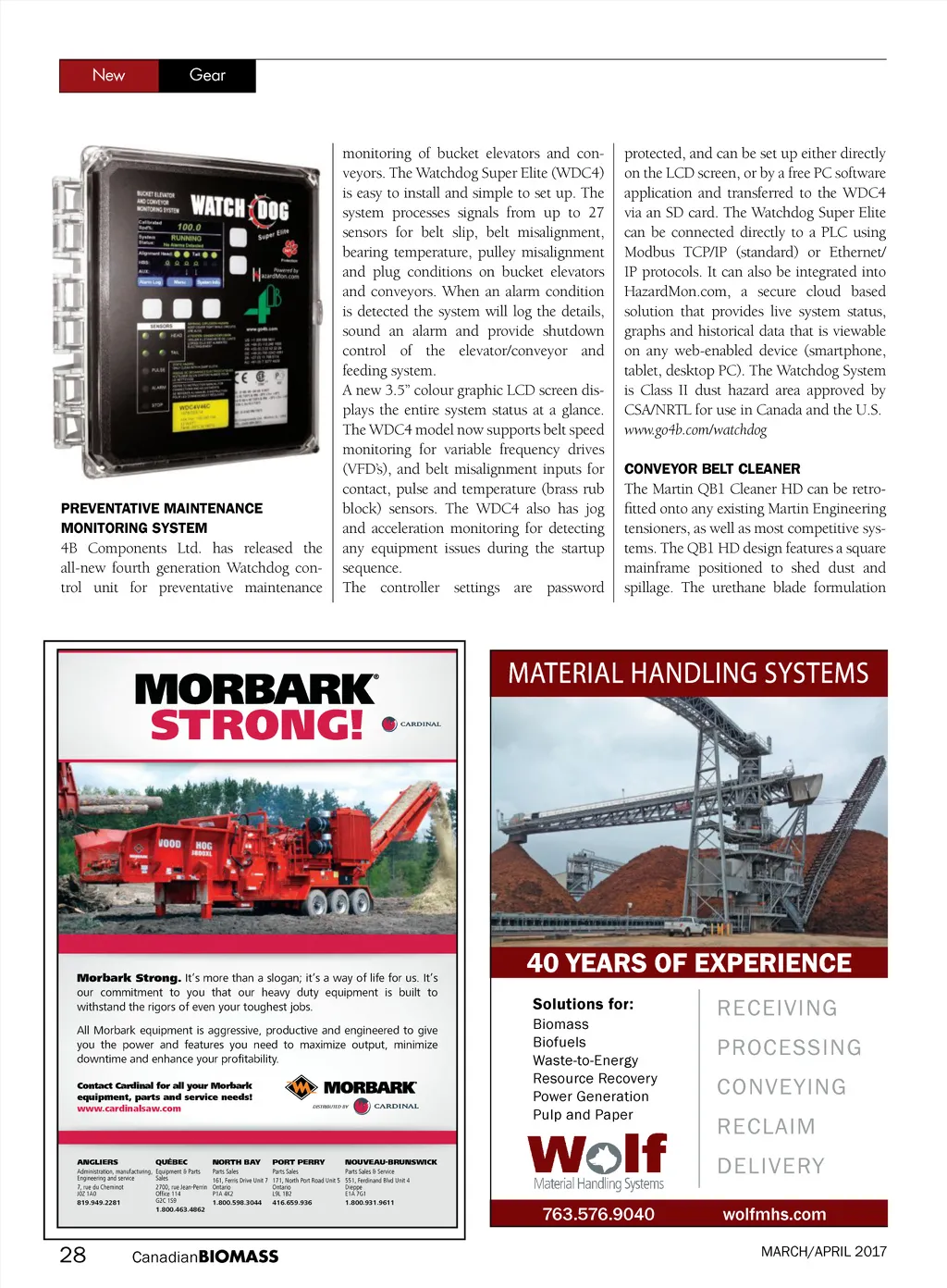

New Gear PREVENTATIVE MAINTENANCE MONITORING SYSTEM 4B Components Ltd. has released the all-new fourth generation Watchdog con-trol unit for preventative maintenance monitoring of bucket elevators and con-veyors. The Watchdog Super Elite (WDC4) is easy to install and simple to set up. The system processes signals from up to 27 sensors for belt slip, belt misalignment, bearing temperature, pulley misalignment and plug conditions on bucket elevators and conveyors. When an alarm condition is detected the system will log the details, sound an alarm and provide shutdown control of the elevator/conveyor and feeding system. A new 3.5” colour graphic LCD screen dis-plays the entire system status at a glance. The WDC4 model now supports belt speed monitoring for variable frequency drives (VFD’s), and belt misalignment inputs for contact, pulse and temperature (brass rub block) sensors. The WDC4 also has jog and acceleration monitoring for detecting any equipment issues during the startup sequence. The controller settings are password protected, and can be set up either directly on the LCD screen, or by a free PC software application and transferred to the WDC4 via an SD card. The Watchdog Super Elite can be connected directly to a PLC using Modbus TCP/IP (standard) or Ethernet/ IP protocols. It can also be integrated into HazardMon.com, a secure cloud based solution that provides live system status, graphs and historical data that is viewable on any web-enabled device (smartphone, tablet, desktop PC). The Watchdog System is Class II dust hazard area approved by CSA/NRTL for use in Canada and the U.S. www.go4b.com/watchdog CONVEYOR BELT CLEANER The Martin QB1 Cleaner HD can be retro-fitted onto any existing Martin Engineering tensioners, as well as most competitive sys-tems. The QB1 HD design features a square mainframe positioned to shed dust and spillage. The urethane blade formulation STRONG! Morbark Strong. It’s more than a slogan; it’s a way of life for us. It’s our commitment to you that our heavy duty equipment is built to withstand the rigors of even your toughest jobs. All Morbark equipment is aggressive, productive and engineered to give you the power and features you need to maximize output, minimize downtime and enhance your profitability. Contact Cardinal for all your Morbark equipment, parts and service needs! www.cardinalsaw.com Solutions for: Biomass Biofuels Waste-to-Energy Resource Recovery Power Generation Pulp and Paper RECEIVING PROCESSING CONVEYING RECLAIM DELIVERY DISTRIBUTED BY ANGLIERS Administration, manufacturing, Engineering and service 7, rue du Cheminot J0Z 1A0 819.949.2281 QUÉBEC Equipment & Parts Sales 2700, rue Jean-Perrin Office 114 G2C 1S9 1.800.463.4862 NORTH BAY Parts Sales 161, Ferris Drive Unit 7 Ontario P1A 4K2 1.800.598.3044 PORT PERRY Parts Sales 171, North Port Road Unit 5 Ontario L9L 1B2 416.659.936 NOUVEAU-BRUNSWICK Parts Sales & Service 551, Ferdinand Blvd Unit 4 Dieppe E1A 7G1 1.800.931.9611 763.576.9040 wolfmhs.com MARCH/APRIL 2017 28 Canadian BIOMASS CBM_Hoffmann_Airoflex_Janfeb17_CSA.indd 2 2016-12-21 8:15 AM CFI_cardinal_morbark_JanFeb17_CSA.indd 1 2017-01-20 7:51 AM
